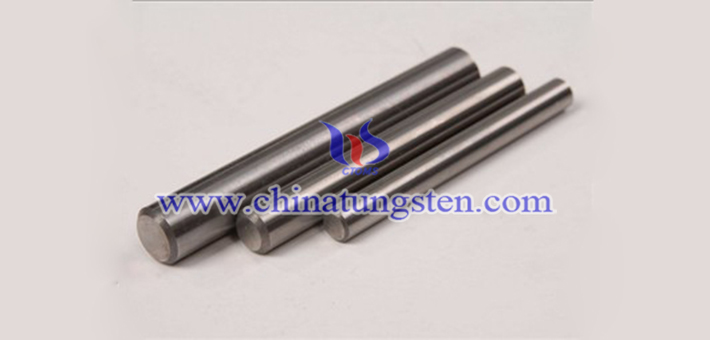

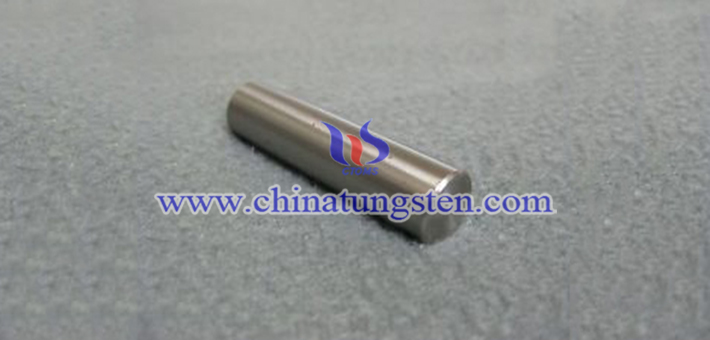

HPM1760 tungsten alloy rod is manufactured using Chinatungsten Online’ strict quality measures, guaranteeing a consistent, reliable material. Its ingredient is 92.5% tungsten、7.5% nickel and iron. It has a unique combination of density, mechanical strength, machinability, corrosion resistance, and economy. These versatile materials provide distinct advantages when compared to traditional high-density materials such as lead or uranium.
The properties of HPM1760 tungsten alloy rod are:
Matrix: 92.5% W
Binder: 7.5% Ni-Fe
Density: 17.6g/cm3 and 0.636lb/in3
Thermal Conductivity: 80 W/(m?K)
Coefficient of Thermal Expansion 20~100℃：5.5μm/(m?K)
Coefficient of Thermal Expansion 20~300℃：5.8μm/(m?K)
Coefficient of Thermal Expansion 20~4500℃：5.9μm/(m?K)
Electrical Conductivity: 12% IACS
Electrical Resist：0.14~0.16μΩ?m
Yield Strength (0.2% offset): 75.4~89.9KSI
Tensile Strength: 110~123 KSI
Elongation: 10~17%
Hardness：295~335HV10
Modulus of Elasticity：320~370GPa
Magnetic Properties: Slightly Magnetic
