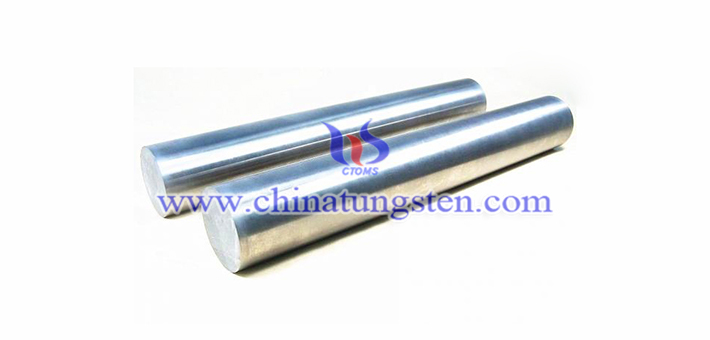

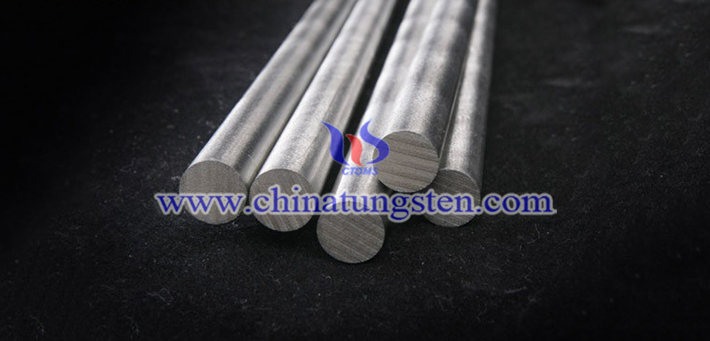

HPM1700 tungsten alloy rod is manufactured using Chinatungsten Online’ strict quality measures, guaranteeing a consistent, reliable material. Its ingredient is 90% tungsten、10% nickel and copper. It is suitable for high-temperature environments and applications such as bearing assembly, ballast, casting, step soldering, and radiation shielding.
The properties of HPM1700 tungsten alloy rod are:
Matrix: 90% W
Binder: 10% Ni-Fe
Density: 17.0g/cm3 and 0.614lb/in3
Thermal Conductivity: 70 W/(m?K)
Coefficient of Thermal Expansion 20~100℃：6.1μm/(m?K)
Coefficient of Thermal Expansion 20~300℃：6.2μm/(m?K)
Coefficient of Thermal Expansion 20~4500℃：6.3μm/(m?K)
Electrical Conductivity: 11% IACS
Electrical Resist：0.15~0.17μΩ?m
Yield Strength (0.2% offset): 75.4~85.6KSI
Tensile Strength: 110~125 KSI
Elongation: 8~17%
Hardness：285~330HV10
Modulus of Elasticity：310~360GPa
Magnetic Properties: Slightly Magnetic
