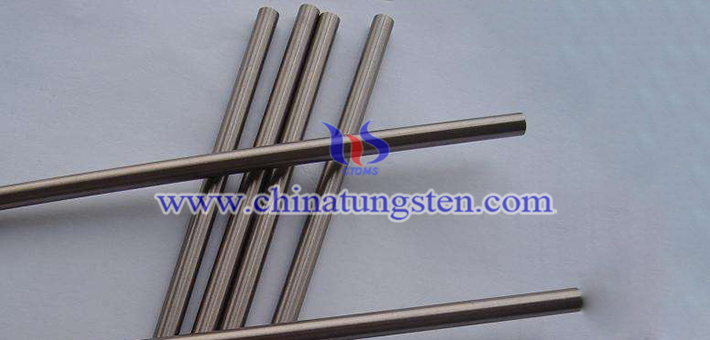

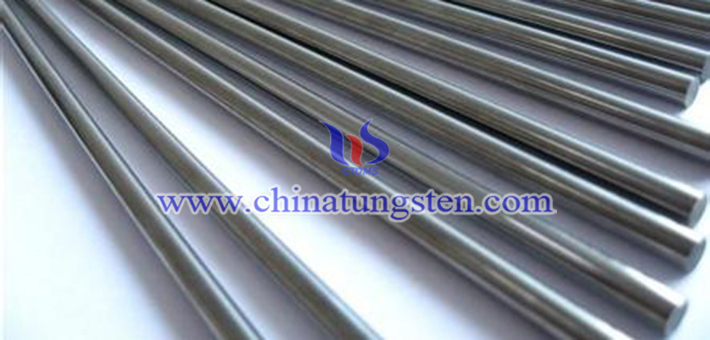

97W-2.1Ni-0.9Fe tungsten alloy rod is manufactured using Chinatungsten Online’ strict quality measures, guaranteeing a consistent, reliable material. Its ingredient is 97% tungsten、2.1% nickel and 0.9% iron. It has a wide array of industries for use in diverse applications.
The Properties of 97W-2.1Ni-0.9Fe tungsten alloy rod are:
Alloy Type：W 97%、Ni 2.1%、Fe 0.9%
MIL-T-21014: Class 4
SAE-AMS-T-21014: Class 4
AMS 7725 C: NIL
ASTM B777-87: Class 4
Density: 18.5 g/cc and 0.668 lbs/ in3
Hardness Rockwell: 28 C
Ultimate Tensile Strength Min: 123,000 ksi
Yield Strength Min (0.2% offset): 85,000 ksi
Elongation: 5 % in 1"
Proportional Elastic Limit: 45,000PSI
Modules of Elasticity: 53 x 106 PSI
Coefficient of Thermal Expansion: 4.5 X 10-6/°C (20~400°C)
Thermal Conductivity: 0.3 CGS Units
Electrical Conductivity: 17 % IACS
Magnetic Properties: Slightly Magnetic
