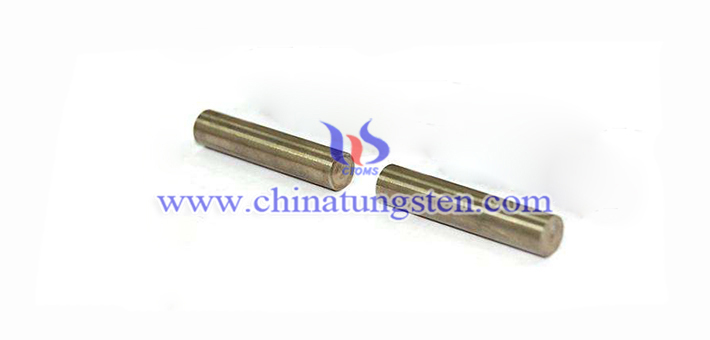

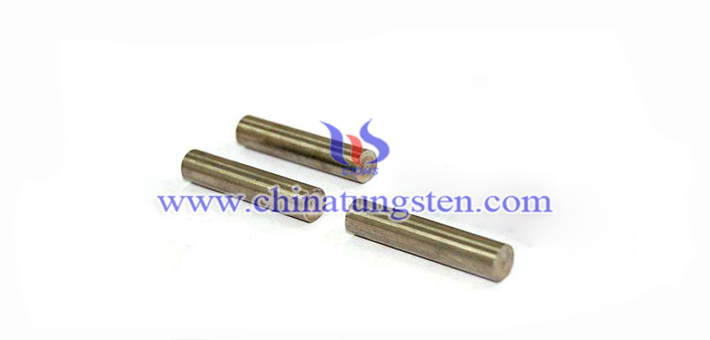

95W-3.5Ni-1.5Cu tungsten alloy rod is manufactured using Chinatungsten Online’ strict quality measures, guaranteeing a consistent, reliable material. Its ingredient is 95% tungsten、3.5% nickel and 1.5% copper. It has a wide array of industries for use in diverse applications.
The Properties of 95W-3.5Ni-1.5Cu tungsten alloy rod are:
Alloy Type：W 95%、Ni 3.5%、Cu 1.5%
MIL-T-21014: Class 3
SAE-AMS-T-21014: Class 3
AMS 7725 C: NIL
ASTM B777-87: Class 3
Density: 18 g/cc and 0.65 lbs/ in3
Hardness Rockwell: 27 C
Ultimate Tensile Strength Min: 110,000 ksi
Yield Strength Min (0.2% offset): 85,000 ksi
Elongation: 7 % in 1"
Proportional Elastic Limit: 45,000PSI
Modules of Elasticity: 45 x 106 PSI
Coefficient of Thermal Expansion: 4.43 X 10-6/°C (20~400°C)
Thermal Conductivity: 0.33 CGS Units
Electrical Conductivity: 16 % IACS
Magnetic Properties: NIL
