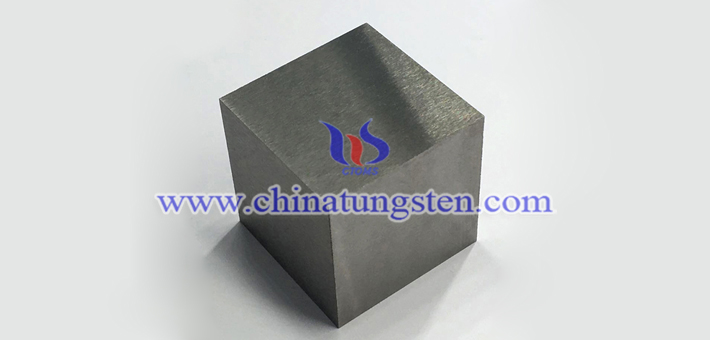

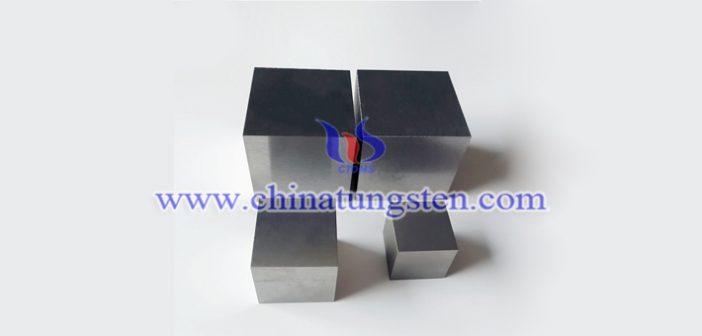

95W-3.5Ni-1.5Fe tungsten alloy brick has high density, high melting point, high hardness, good wear resistance, excellent corrosion resistance, good ray shielding ability and a series of excellent performance. It can be used to make high temperature parts, wear parts and shielding parts.
More product details, please visit:
http://www.tungsten-alloy.com/tungsten-alloy-brick.html
The properties of 95W-3.5Ni-1.5Fe tungsten alloy Brick are:
Alloy Type（%）：95W、3.5Ni、1.5Fe
MIL-T-21014: Class 3
SAE-AMS-T-21014: Class 3
AMS 7725 C: NIL
ASTM B777-87: Class 3
Density: 18 g/cc and 0.65 lbs/ in3
Hardness Rockwell: 27 C
Ultimate Tensile Strength Min: 120,000 ksi
Yield Strength Min (0.2% offset): 90,000 ksi
Elongation: 7 % in 1"
Proportional Elastic Limit: 44,000PSI
Modules of Elasticity: 50 x 106 PSI
Coefficient of Thermal Expansion: 4.6 x 10-6/°C (20~400°C)
Thermal Conductivity: 0.26 CGS Units
Electrical Conductivity: 13 % IACS
Magnetic Properties: Slightly Magnetic
